Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Áp lực danh nghĩa: | 1,6MPa | Phạm vi nhiệt độ: | -50~-250C |
|---|---|---|---|
| Phương thức kết nối: | mặt bích | Chế độ kích hoạt: | electric.pneumatic.manual(có khóa) |
| Nguyên vật liệu: | SUS316, 304 | Phụ kiện: | định vị, công tắc giới hạn van điện từ |
| Phương tiện áp dụng: | nước, hơi nước, khí đốt | Kết cấu: | Quả bóng |

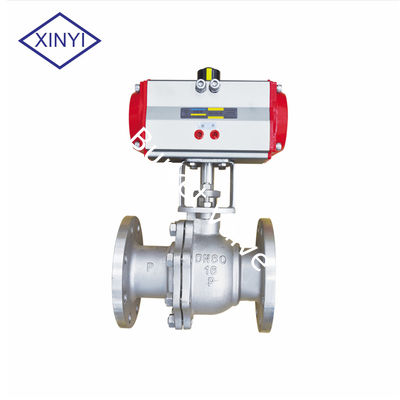

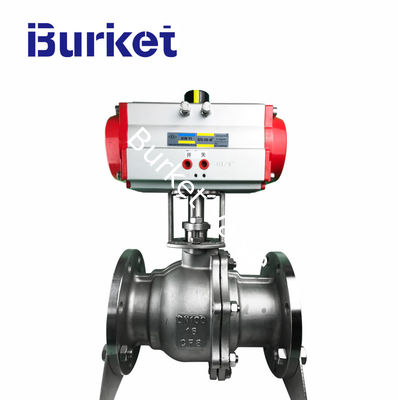

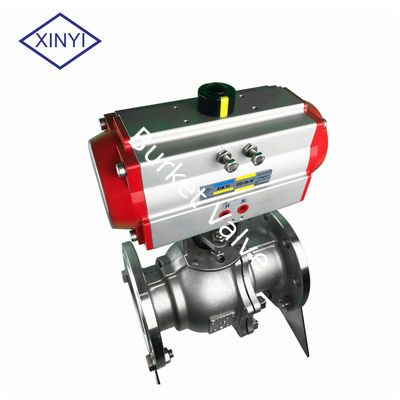

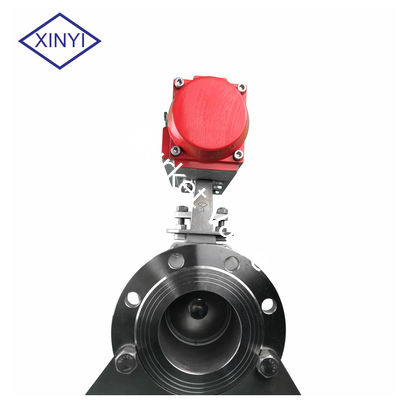

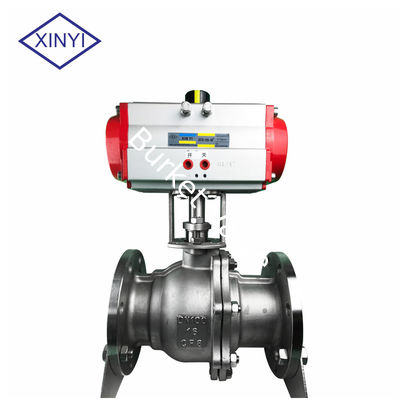

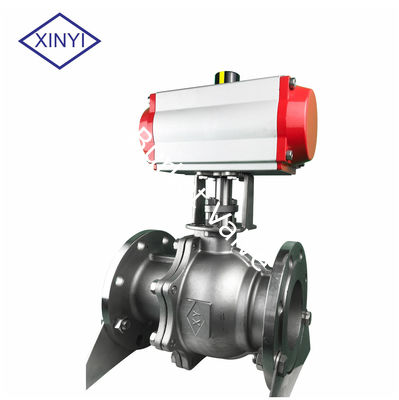

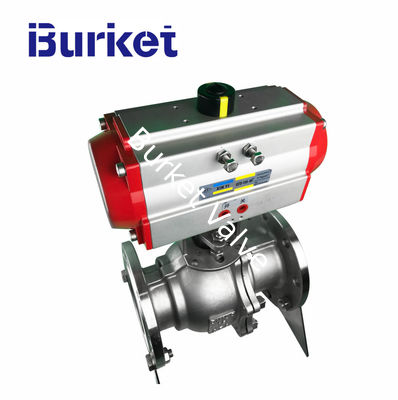

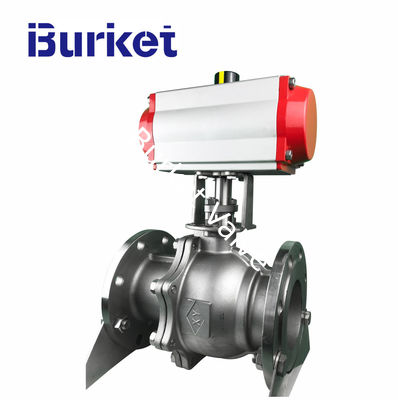

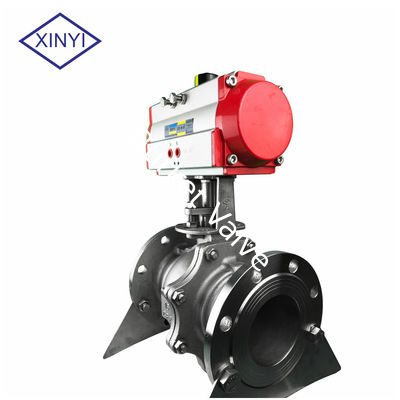

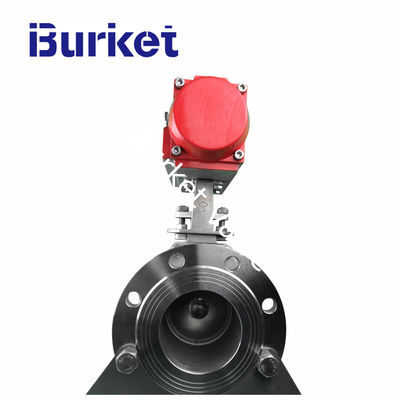

Stainless steel Flanged v type ball valve adjustable pneumatic ball valve
The pneumatic V control ball valve is used to adjust the parameters of pressure, flow, temperature and liquid level by using the DN series actuator. The valve core is opened with the V type incision, and the shear force is generated by the relative rotation of the hard seal valve group. The fiber can be cut off to prevent the death of the card. It has the characteristics of large circulation capacity, high adjustment precision, large adjustable ratio, good sealing, and important light and so on. It is suitable for most occasions with small caliber, corner type and three way connection. It is the best product of too imported products, especially for mud and fiber medium, which has been regulated by small solid suspension medium of aviation oil. It is widely used in the automation control system of paper making, sugar, oil, chemical, liquid crystal, air conditioning, fire protection and water supply and drainage.
SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close
DOUBLE ACTING ACTUATOR
Air to Open, Air to Close
| Product Name | Ball Valve |
| Applicable Medium | Water, Gas, Oil, etc |
| Working Pressure | 1.6 MPa |
| Body | WCB |
| Valve Stem | 304,316, 2Cr13,etc |
| Seal Material | PTFE |
| Working Temperature | ≤250℃ |
| Packing Details | Usually Bubble Pack For Each Valve Within Carton Box Or Plywood Case, Or Special Packaging Upon Customer Requirements |
| NO. | Parts names |
QTY | MATEIRAL | |
| 1 | VALVE BODY | 1 | WCB/CF8/CF8M/CF3/CF3M | |
| 2 | BALL BODY | 1 | CF8/CF8M+Chrome plated collaterals or supersonic spray | |
| 3 | HEX BOLT | 4 | SS304 | |
| 4 | REAR COVER | 1 | CF8/CF8M | |
| 5 | o ring | 1 | FLUORO | |
| 6 | Regulating pad | each 1 | PTFE | |
| 7 | BEARING | 1 | composite MATERIAL | |
| 8 | REAR STEM | 1 | 17-4PH/SS316 | |
| 9 | FRONT STEM | 1 | 17-4PH/SS316 | |
| 10 | FLAP KEY | 1 | SS304/45# | |
| 11 | BEARING | 1 | COMPOSITE MATERIAL | |
| 12 | FILLER | 1set | PTFE | |
| 13 | BOLT | 2 | SS304 | |
| 14 | FILLER COVER | 1 | CF8 | |
| 15 | HEX BOLT | 2 | SS304 | |
| 16 | o ring | 1 | Fluorine rubber | |
| 17 | SEAL SEAT | 1 | PTFE/SS304/SS316+Hard chromium plating or supersonic spray coating | |
| 18 | SEAL SEAT SRPING | 1 | SS316 | |
| 19 | SEAL SEAT COVER | 1 | Q235/SSS304/SS316 | |
| 20 | HEX BOLT | 4 | SS304 | |
| 21 | bracket1 | 1 | SS CF8 | |
| 22 | CONNECTING CORE | 1 | SS 304 | |
| 23 | pneumatic actuator | 1 | AT/SW SERIES |
|
Workshop
Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.
Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.
Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
A: We are factory.
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
