Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Áp lực danh nghĩa: | 1,6MPa | Phạm vi nhiệt độ: | -50~-250C |
|---|---|---|---|
| Phương thức kết nối: | mặt bích | Chế độ kích hoạt: | electric.pneumatic.manual(có khóa) |
| Nguyên vật liệu: | SUS316, 304 | Phụ kiện: | định vị, công tắc giới hạn van điện từ |
| Phương tiện áp dụng: | nước, hơi nước, khí đốt | Kết cấu: | Quả bóng |

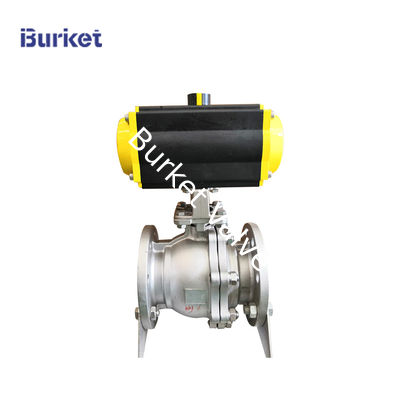

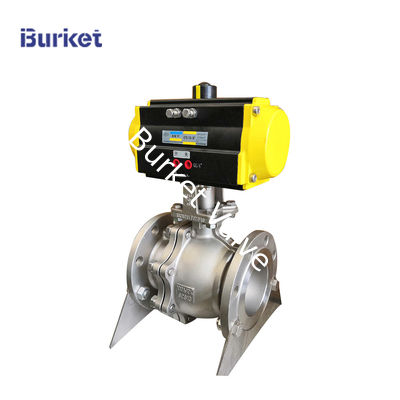

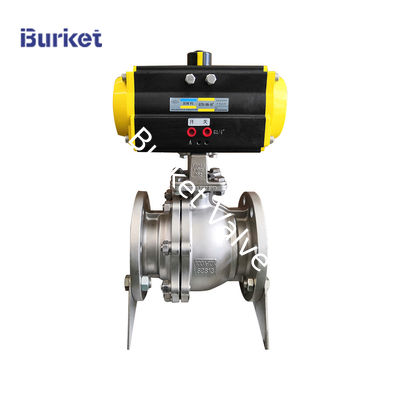

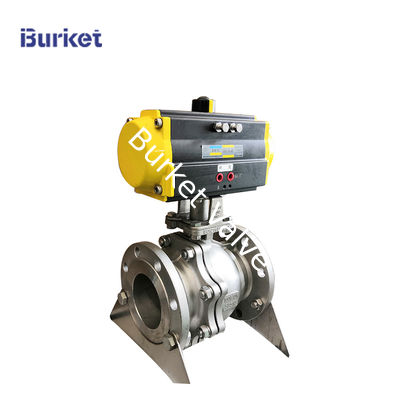

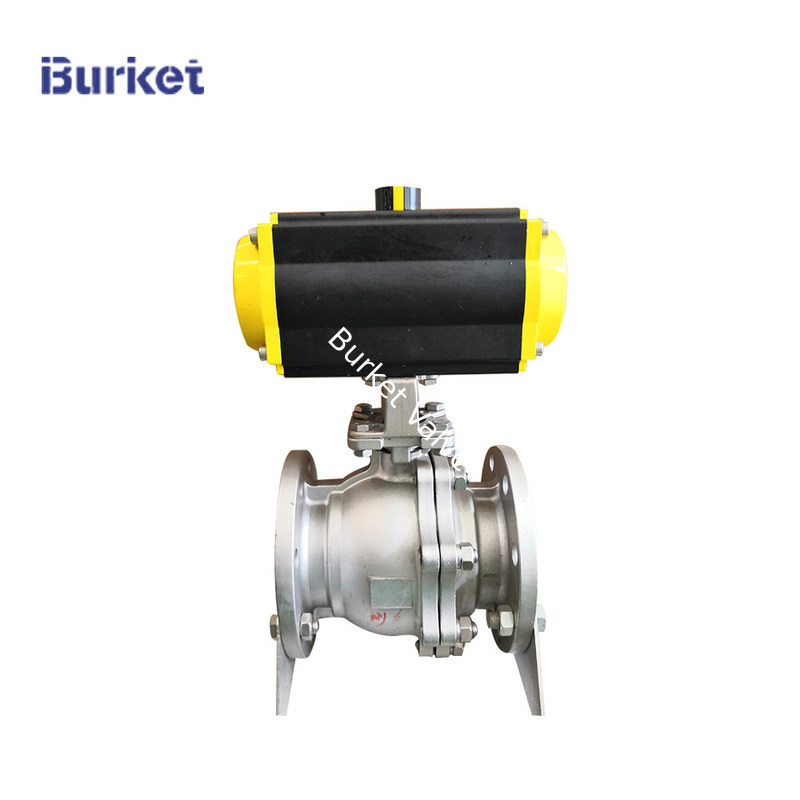

SS304 Double acting Pneumatic Operated Flanged Ball Valve for dyeing machine
Applications:
Pneumatic actuator ball valve are greatly used in
SINGLE ACTING ACTUATOR (SPRING RETURN)
Air to Open, Spring Return to Close
DOUBLE ACTING ACTUATOR
Air to Open, Air to Close
| Product Name | Ball Valve |
| Applicable Medium | Water, Gas, Oil, etc |
| Working Pressure | 1.6 MPa |
| Body | WCB |
| Valve Stem | 304,316, 2Cr13,etc |
| Seal Material | PTFE |
| Working Temperature | ≤250℃ |
| Packing Details | Usually Bubble Pack For Each Valve Within Carton Box Or Plywood Case, Or Special Packaging Upon Customer Requirements |
| NO. | Parts names |
QTY | MATEIRAL | |
| 1 | VALVE BODY | 1 | WCB/CF8/CF8M/CF3/CF3M | |
| 2 | BALL BODY | 1 | CF8/CF8M+Chrome plated collaterals or supersonic spray | |
| 3 | HEX BOLT | 4 | SS304 | |
| 4 | REAR COVER | 1 | CF8/CF8M | |
| 5 | o ring | 1 | FLUORO | |
| 6 | Regulating pad | each 1 | PTFE | |
| 7 | BEARING | 1 | composite MATERIAL | |
| 8 | REAR STEM | 1 | 17-4PH/SS316 | |
| 9 | FRONT STEM | 1 | 17-4PH/SS316 | |
| 10 | FLAP KEY | 1 | SS304/45# | |
| 11 | BEARING | 1 | COMPOSITE MATERIAL | |
| 12 | FILLER | 1set | PTFE | |
| 13 | BOLT | 2 | SS304 | |
| 14 | FILLER COVER | 1 | CF8 | |
| 15 | HEX BOLT | 2 | SS304 | |
| 16 | o ring | 1 | Fluorine rubber | |
| 17 | SEAL SEAT | 1 | PTFE/SS304/SS316+Hard chromium plating or supersonic spray coating | |
| 18 | SEAL SEAT SRPING | 1 | SS316 | |
| 19 | SEAL SEAT COVER | 1 | Q235/SSS304/SS316 | |
| 20 | HEX BOLT | 4 | SS304 | |
| 21 | bracket1 | 1 | SS CF8 | |
| 22 | CONNECTING CORE | 1 | SS 304 | |
| 23 | pneumatic actuator | 1 | AT/SW SERIES |
|
Workshop
Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.
Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.
Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
